Sunday, December 29, 2013

Delta Bot Build

The first time I saw video of a delta robot style 3D printer, I decided the next printer I built was going to be a delta. Based on everything I've learned from my MendelMax, I knew I wanted a printer that was as stout and stiff structurally as possible, with a GT2 belt drive. Some of the deltas use spectra fishing line, which to me seems like a troublesome way to drive the mechanism, particularly since the GT2 belts are so reliable.

I decided to try using the Makerslide system for the linear bearings vs. the traditional Rostock bearing rods. This solution seems like a nice way to combine a linear slide with the vertical structural components at an affordable price. I sourced the Makerslide linear slide extrusions and related hardware from Inventables.com.

The Wolfstock style delta-bot seems like a good design. But, I wanted to run the drive belts through the inside of the Makerslide for a cleaner look. I couldn't find quite what I was looking for on Thingiverse, so I started to design my own version.

All of the solid models are my design work, but they are almost all heavily based on the Wolfstock, Kossel, and Rostock printer designs. I'm putting the solid models and .stl files on Thingiverse if you'd like to download them: http://www.thingiverse.com/thing:214848 This being Minnesota in the winter- I decided to call it the "Snowstock Delta Bot."

The parts from Inventables arrived quickly and all seem to be top quality. I'll definitely keep this stuff in mind for future projects- maybe even some light-duty industrial automation. It certainly is much less expensive than traditional linear bearings.

Linear slide carriage components from Inventables
Laying out the parts for the V-grove rollers

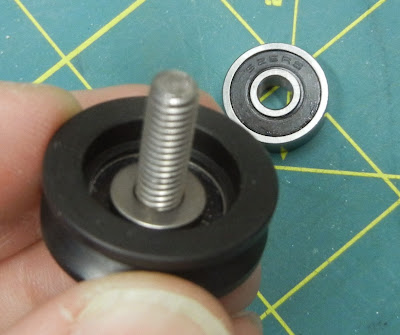

Pressed in one bearing and a M5x20mm SHCS
Using washer to space bearings (so when tightened, compression load is transmitted through bearing hub)

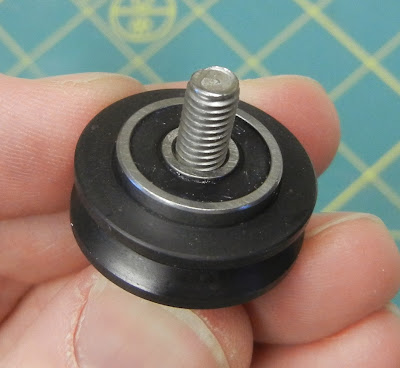

Second bearing pressed in to place

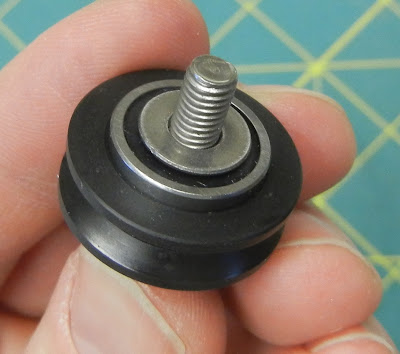

Spacer washer in place

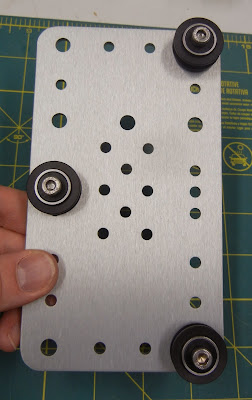

Linear slide carriage assembled

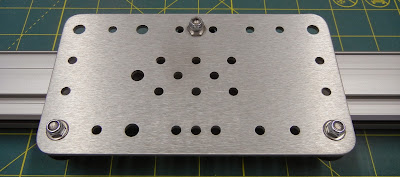

Carriage mounted to Makerslide extrusion

Eccentric spacer allows for adjusting preload of V-grove wheels against Makerslide rail


The overall design of the printer is intended to keep the structure as simple and solid as possible. Some of the other designs I've seen on Thingiverse have really large printed parts. I tried to keep the printed parts as small as possible, and utilize more 8020 style extruded pieces. Really large printed parts take excessive amounts of time to print, and I always have problems with part warp-age or other quality problems. Plus, if you can source the 8020 extrusions used from a industrial surplus source it's really pretty inexpensive.

I printed all of the big structural parts using a 0.5mm nozzle with a 0.5mm layer height. I think the thicker layers are stronger than thinner- fewer opportunities for layer separation.
Base components, one motor mounted to test hole alignment

Base components
Top corners, including idler pulley mount

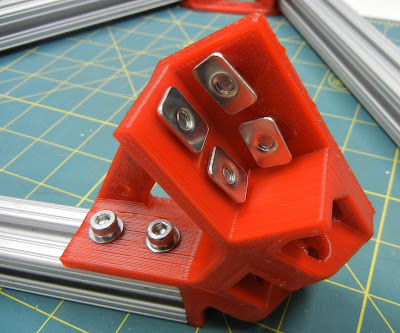

M5x10mm SHCS, washers, & T-slot nuts ready for assembly
 The first two extrusions are easy to install- locate the screws & T-slot nuts in the printed corners, line everything up, and carefully slide the extrusion into place. The last extrusion is much tricker to install!

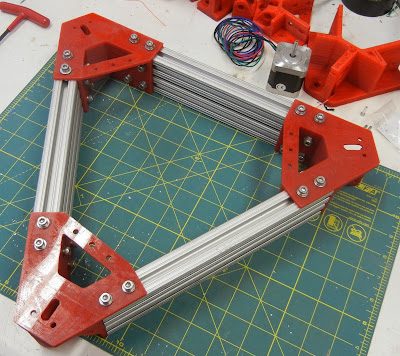

Upper Triangle Assembled

Lower Triangle Assembled

Motor & motor mount

Testing alignment between upper and lower triangles

Testing alignment between upper and lower triangles

All 3 Makerslide tower sections clamped together before a final trim to get all three lengths exactly the same

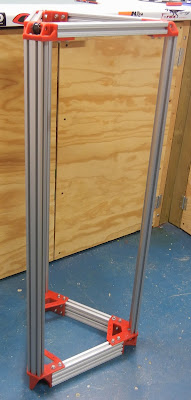

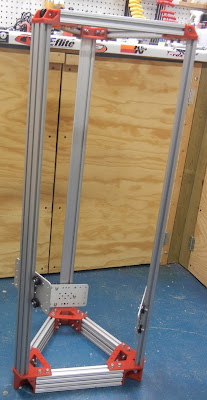

Frame Assembled!



The assembled frame seems pretty sturdy- I am considering installing diagonal corner braces just to really stiffen it up.

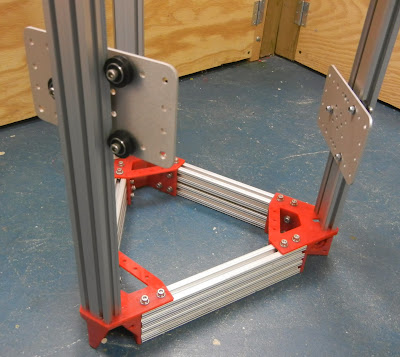

Carriages in place

Carriage detail

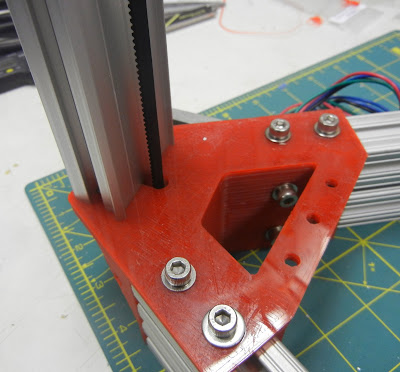

The is the whole reason for a new design- keeping the belt return path inside of the vertical extrusions- nice clean look

Motor mount, GT2 pulley detail

Next steps:

  • design, print and try belt clamps
  • source some suitable tie rods & tie rod ends
As for the Tie (effector) Rods, initially I'm going to try using the same dimensions as the benchmark Rostock 3D printer design:


  • Rod Length: 250mm Eyelet to Eyelet (same as Rostock)
  • Traxxas 5347 Rod ends x12 (popular online choice for rod ends)
  • Thursday, December 26, 2013

    Improved Filament Guide

    More efforts to improve filament feeding into the printer- mostly to try and eliminate filament jams around the spool, but also to reduce the force required to pull filament off the spool. The files for this filament feeder can be found on thingiverse: http://www.thingiverse.com/thing:199104

    Components printed and ready to go
    608 bearings pressed into place
    whole range of parts tried- no wheel version on the left, and various guide peg locations on the right.

    Assembled

    And running!
